Product name:
High temperature explosion-proof temperature measuring and monitoring system
Product model:
LM-BG700Ex
Product name:
High temperature explosion-proof temperature measuring and monitoring system
Product model:
LM-BG700Ex
Product introduce:
The temperature-measuring type of high temperature ignition TV is equipped with two cameras respectively. One HIGH-DEFINITION camera is used to observe the real-time image in the kiln, and the other infrared camera is used to measure the temperature in the kiln. At the same time, there are temperature measuring components installed, in the kiln abnormal, sudden power cut, the temperature is too high, the measuring camera automatically quit the kiln when the gas is cut off, to protect the fire industry TV safety, power, ventilation and camera temperature is normal after the automatic control into the kiln. The LM-BG700EX high temperature industrial TV system adopts the structure of dual-optical path system, combines color CCD and near-infrared CCD, and utilizes the imaging technology of high-performance color and near-infrared CCD to develop "the full-field real-time monitoring system of the workpiece surface temperature in furnace based on color and near-infrared CCD".
Main Function:
The system can automatically and quickly detect the workpiece position and material surface temperature in the industrial furnace without the influence of the detection distance. It is of great significance to optimize the process control of cement rotary kiln, improve the product quality, save energy and reduce consumption, and produce safely. Play the role of control - energy conservation, emission reduction and efficiency enhancement. Temperature measuring industrial TV adopts far infrared camera, computer system and traditional high temperature industrial TV. The system can display the temperature at any 16 points in the monitoring picture. Traditional video output and thermal image output coexist, ±2% temperature measurement accuracy, optional 4-20mA output, monitoring area temperature rise or fall alarm.

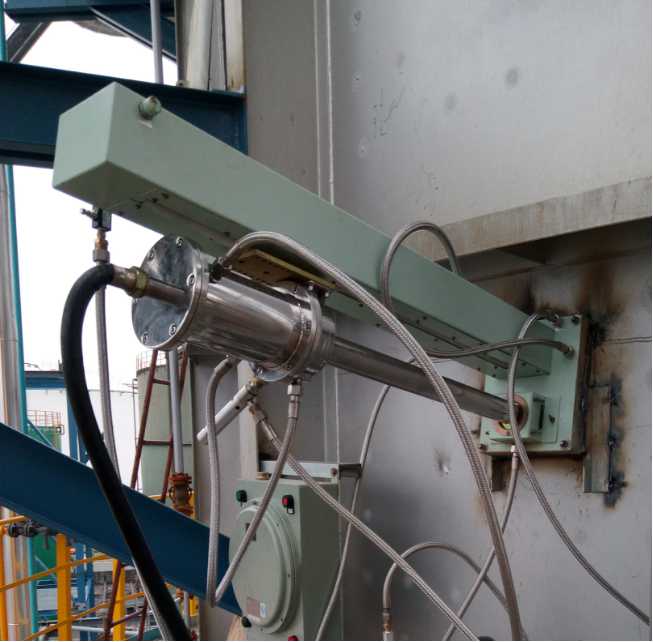

The system adopts PLC control technology to automatically control the entry and exit of the camera and lens. In case of problems in the system power supply, compressed air supply and when the temperature inside the probe cover exceeds the range, the mechanism can be automatically withdrawn from the furnace, playing an automatic protection role for the equipment.

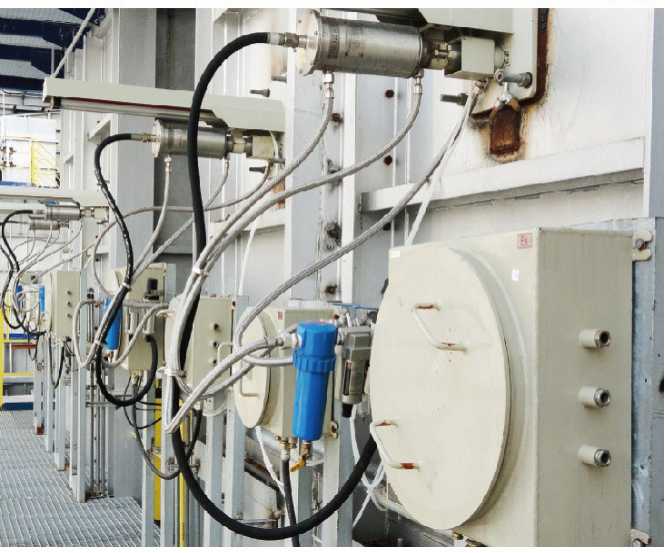

Temperature measuring type high-temperature industrial television for changzhou Liu Ming production, a complete set of equipment includes camera some protection device, actuator device, control cabinet, the gas field components bellows, optical fiber and cable, precision oil and water filter, control of converter and control box, computer host (including the temperature measuring software), printer, monitor, etc. Equipment installation is simple. Each set of equipment only needs 3 days of on-site debugging training.

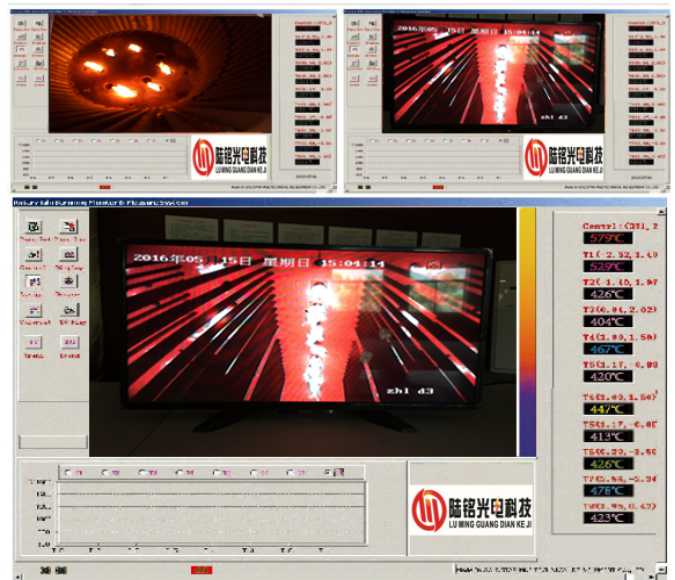

The simple application software of the temperature measuring type high temperature industrial TV system directly displays the picture and temperature of unlimited points and areas measured in real time on the screen. Individual or organizational alerts provide immediate information. Thermal profile, image memory, differential temperatures, real-time and historical data trends and high temperature points and more.
Temperature measuring type high temperature industrial TV system is an infrared digital electronic coupling camera that can be installed in 400mm wall casing installed in the kiln has a fault prevention device. The electronic temperature measuring element and electronic coupled imaging technology are transmitted to the central control through error-free digital transmission system, which can transmit up to 25km. High-definition video combined with unique 60Hz full imaging technology can monitor the operation and quality of fuel and products in real time and detect real-time temperature, thus ensuring accurate and safe operation of the kiln.
Technical Parameter:
Model | Temperature measuring type high temperature industrial television LM-BG700Ex | |
Product Feature | Suitable for furnace with wall thickness of around 500mm wide viewing Angle | |
Ambient Temperature | Furnace temperature | ≤1800℃ |
Control system | ≤70℃ | |
Automatic exit | Power outage, gas stop, over temperature, water pressure when the probe can automatically retreat from the furnace | |
Automatic exit Device | Exit stroke | 500mm |
Manually access the exit function | Yes | |
Control Device | PLC programmable control | Eight inputs, four outputs |
Two-step control | It can realize on-site control and operation of two places | |
Power supply | Power Supply | AC220V±10% |
line frequency | 50Hz | |
Compressed air inlet pressure | 0.3~0.7MPa | |
Gas supply requirements | Inlet temperature of compressed air | ≤35℃ |
Minimum flow of compressed air | 0.3M³/min | |
The image index | Resolution ratio | 2.0million pixel |
SNR | 56db | |
Explosion-proof indicators | Explosive-proof grade | IP68 |
Explosion-proof sign | Exd IIC T6 Gb | |
Explosion-proof number | CNEx16.029 | |
Depending on the Angle | Random deployment | 17°-81C° |
Temperature measurement | Measuring Range | 700°-1800° |
Temperature measuring points | Screen optional temperature measurement point | 16 piont optional |
Cable configuration | power cable | AVV3×1 |
Network cable | AT6 | |
Controlling cable | AVPV6×0.5 | |
Cooling air requirements for substrates | Flow | 300L/min |
Cold vortex tube | the inlet of the compressed air is greater than 0.35MP, the outlet temperature difference of the compressed air is 23 degrees | |
Mounting distance | The maximum distance from the control device to the automatic exit device is 20M, and the maximum distance from the central control room to the site is 25KM |
