Kiln shell infrared scanning temperature measurement system
Kiln shell infrared scanning temperature measurement system
Kiln shell infrared scanning temperature measurement system
Kiln shell infrared scanning temperature measurement system

Product name:

Kiln shell infrared scanning temperature measurement system

Product model:

LM-KTS200

Hotline:+86-18112302260

Email:lmgd800@163.com

contact us

Product introduction:

1. Suitable for all kinds of rotary kiln (cement kiln, lime kiln, titanium alloy kiln, aluminum kiln).

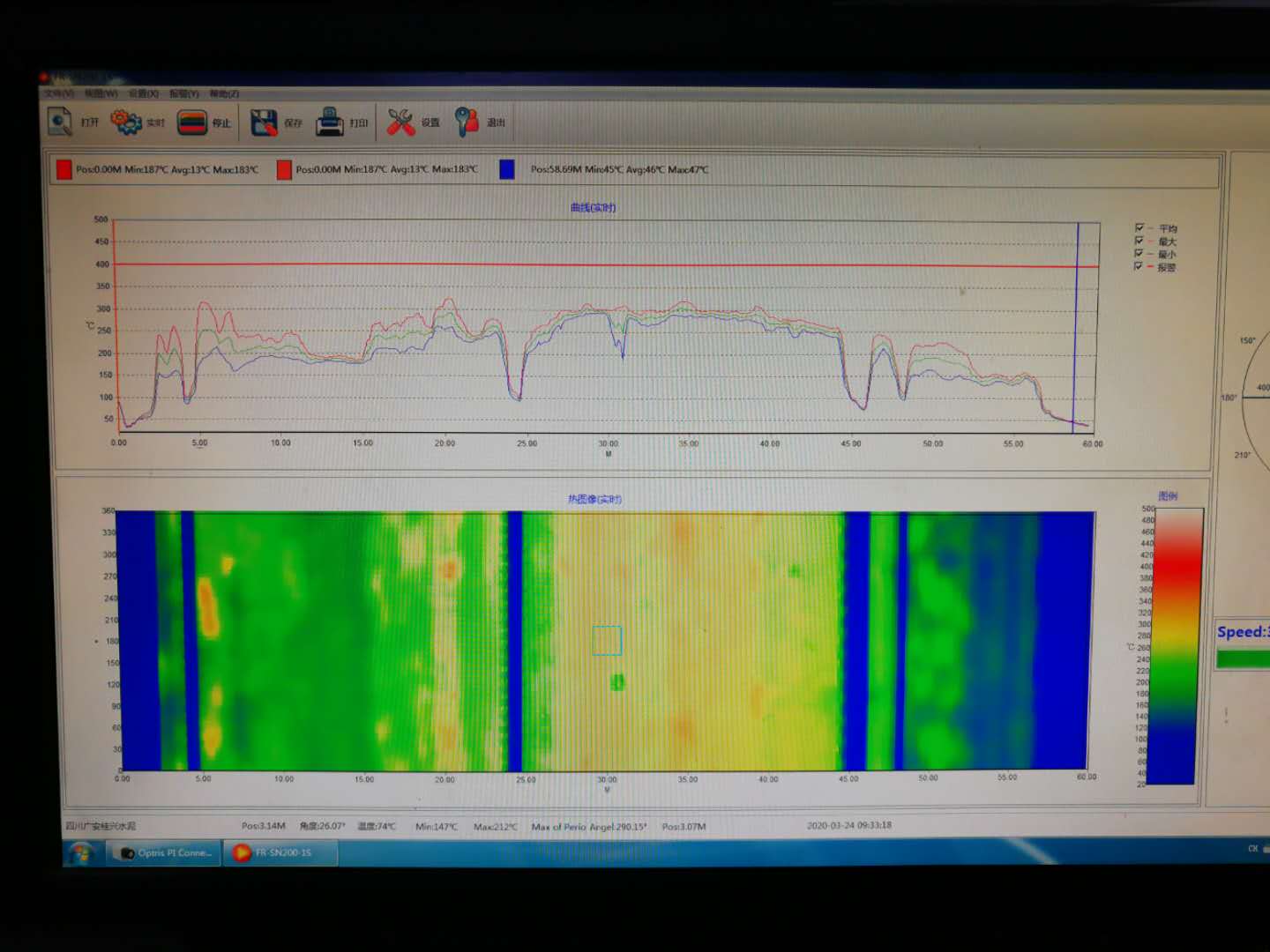

2. Real-time monitoring and analysis function of kiln temperature.
3. Recorded analysis function of kiln historical temperature.
4.Management function of refractory materials is easy to repair and maintenance.
5. Quick analysis function of section temperature.
6. Analysis function of the whole kiln.
7. 3D animation analysis function of kiln temperature and the thickness of kiln liner.
8. Quick analysis and compare functions of new or old temperature data.
9. Failure warning function of productive process.
10. Output colorized report.

Technical parameters:

1. Scanning way, continuous high-speed scanning.
2. Scanning range: more than 60m
3. Point response time: 20μs
4. Scanning frequency: 20Hz-50Hz
5. Scanning angle: 90°-120° adjustable
6. Temperature measuring range: 50℃-600℃
7. Temperature measuring precision: ±2℃
8. Repeatability: ±1℃
9. Scanning period: kiln turn a week
10. Working temperature: -20℃~+55℃
11. Thermal resolution: 500:1 or more
12. Scanning points: 1250points/line
13. Target face size: maximum 21cm( scanning range is 60 meters)

Compressed air(special environment need cooling):

1. Air pipe port: G1/4”
2. Work pressure: 0.2MPa~0.8MPa
3. Maximum moment: 15(nm)
4. Maximum load: 300(n)
5. Minimum flow: 0.3M³/min

Working condition temperature:

1.Environment temperature:-20℃~70℃
2.Environment humidity:≤90%
3.kiln temperature:≤600℃

Dimension:

1.Scan head device:Φ400*500*250mm (W*D*T)

2.Control box:320*480*240mm(W*H*D)
