Product introduction:

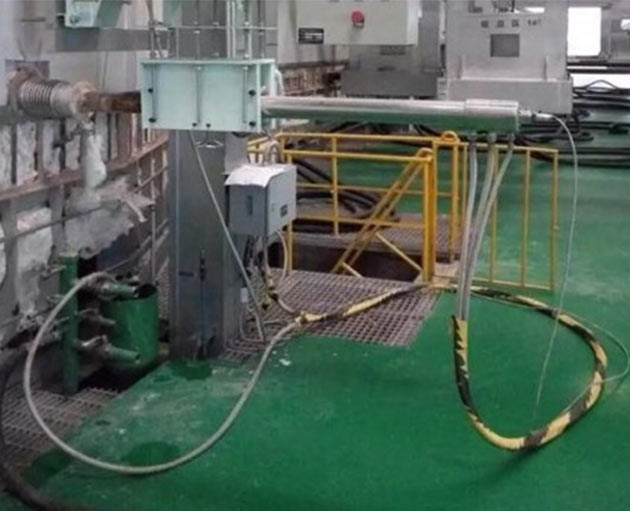

1.The probe cover can be inserted into the tin tank for several meters

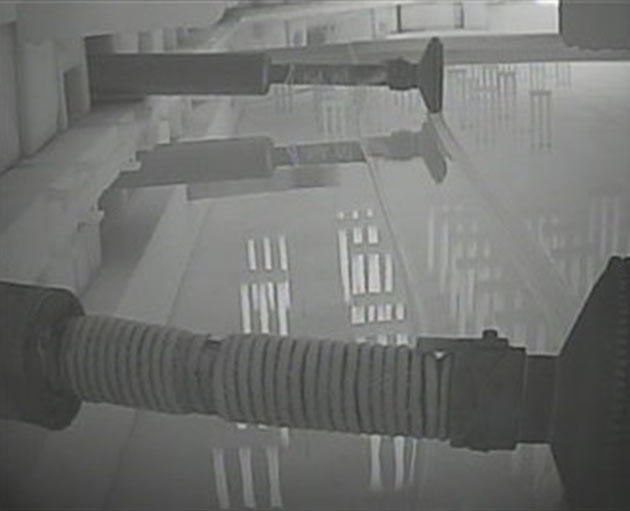

2. Through 90 turning high temperature zoom pinhole lens along the direction of the work piece movement observation, more intuitive and more comprehensive reaction furnace specific conditions

3. The probe cover is made of stainless steel with good temperature/corrosion resistance

4.Special dust proof design, the lens is not easy to accumulate dust

5.Special water cooling design for normal use under poor water quality conditions

6.The self-developed and produced high-temperature pinhole zoom lens has a horizontal resolution of more than 2 million pixels and can withstand temperature of 350 degrees without cooling

7.Manual zoom high temperature pinhole lens can be selected to meet the observation requirements of different kilns and different production processes

8.Electric zoom high temperature pinhole lens can be used to control the size range and sharpness of the image at a distance

9.Can be equipped with manual/electric advance and retreat control device

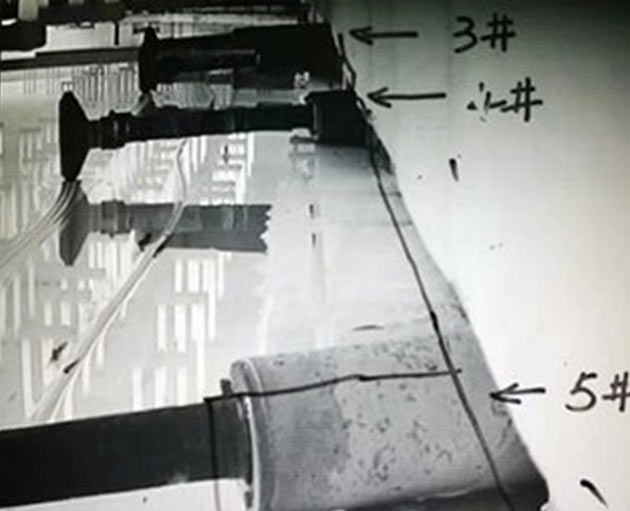

10.Manual/electric rotating device can be equipped to realize all tin tank observation

11.The equipment can be controlled by DCS

Technical Parametric:

1. Sharpness of lens: the horizontal resolution is more than 2 million pixels

2. Lens variable focal length: Continuously adjustable f4-F20

Cooling the nitrogen:

A.The total intake manifold: G3/4"

B.Connecting pipe mouth:3-G1/2"（Add globe valve）

C.entrance pressure:≥0.1Mpa

D.inlet temperature:≤35℃

E.Minimum flow: 0.45 m3 /min

Cooling water:

1.The main intake pipe 3/4”

2.Connection nozzle: 2-G1/2

3.Inlet pressure: 0.2Mpa~0.5Mpa
4.Minimum flow: ≥30L/min
5.Inlet temperature: ≤35°C

Working condition temperature:

1.Filed control cabinet:-20℃～75℃

2.Furnace temperature: ≦1500°C

Dimension:

a. Probe cover: 89mm in diameter and length 1M～3.8M

b. Field control box: 300×400×200mm
